APC SAINIVAS

SPECIFICATION OF THE APARTMENT & SCHEDULE OF AMENITIES

STRUCTURE

Earth Quake resistant RCC framed Structure with suitable Foundation as per soil test specification.

All outer walls should be used for 9” Thick Light Weight Solid Blocks in c.m.1:5

All inner walls shall be used 4” Thick Light Weight Solid Blocks in c.m.1:4

All external walls shall be of Plastered Finish.

Concrete, Brick work using M. Sand and plastering work shall be used river sand.

FLOORING

All rooms shall have Marbonite (Johnson or Somany) flooring and skirting (size 4’ x 2’ ).

Glazed tiles shall be provided in toilet walls concept design up to height of 7’0” and flooring shall be provided non slippery tiles.

Glazed tiles shall be provided also on kitchen wall up to height of 2’0” from the kitchen platform.

Staircases shall be finished with Granite Finish.

DOORS

All doors frames shall be made out of African teak Wood.

Entrance door shall be in Burma Teak Wood with frame and varnished shutter including safety gate.

All internal doors shall be provided water Proofing –Moulded Flush doors.

Powder Coated steel fixtures shall be used for all door fittings.

WINDOWS

All windows shall be provided with UPVC Frames and Glazed Shutters.

In toilets Fixed Lowered Ventilators shall be provided. Provision for exhaust fan along with wiring to be provided in all bathrooms.

All windows and ventilators shall have Enamel Painted Mild Steel Grills.

KITCHEN

Kitchen platform shall be polished in Black Galaxy Granite Slab with Stainless Steel Sink with exhaust fan provision and modular kitchen.

SANITARY WARE & PLUMBING

Colour European Water Closet (EWC) provided in all toilets (Parry ware).

All plumbing line shall be Concealed type as per ISI Standard.

All taps and showers shall be Jaquar Company product.

LOFTS

Concrete lofts shall be provided in kitchen and bedrooms. Cub-boards shall be provided in bedroom, kitchen, dining with granite slab and wherever possible with covered wood work.

FINISHES

Internal surface shall be finish with two coats of putty with Asian Premium Emulsion paint

External surface shall be finished with Asian ULTIMA Emulsion Paint.

WATER SUPPLY

A Sump to receive metro water - 14000 Litres and bore water shall be provided.

An Overhead Tank of sufficient capacity to store bore water – 4000 Litres and metro water – 2500 Litres in separate compartments shall also be provided.

WIRING

All wiring are Concealed suitable for 3-Phase supply A/c wiring provision in Hall and bedrooms.

All Switches shall be Anchor ROMA.

All wiring shall have Finolex copper conductor and adequate routing for lighting and power loads as per ISI Standard.

Separate energy meter shall be given to each apartment in meter room located at ground floor. Distribution board shall be provided in each apartment for easy isolation of supply.

Common services shall have separate meters.

15A plug shall be provided in kitchen and toilets.

COMMON FEATURES

All open area shall be paved with Rubber moulded Paver or Duracrete Tiles.

Entrance and Exit gate shall be provided.

Common areas, staircases and compound shall be with Adequate light points.

An elevators shall be provided of OTIS or Johnson – 6 Passenger Lift.

A Common power backup (Gen Set) Kirloskar will be provided.

Balcony and service area Grill shall be provided.

Automatic Water Level Controller shall be provided at overhead tanks.

CCTV Camera Shall be provided in common areas.

White cool roof tiles shall be provided in terrace.

SITE LOCATION

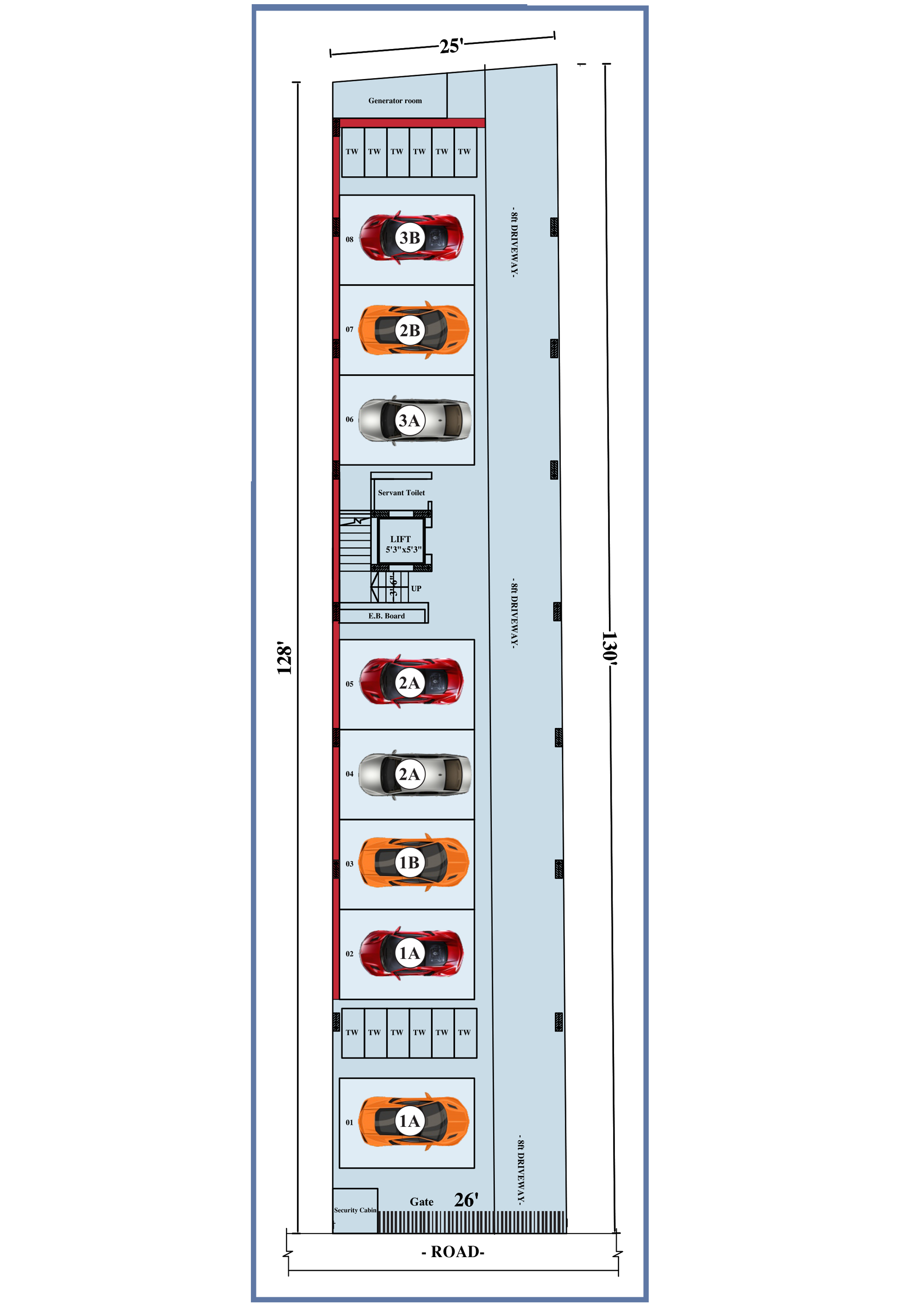

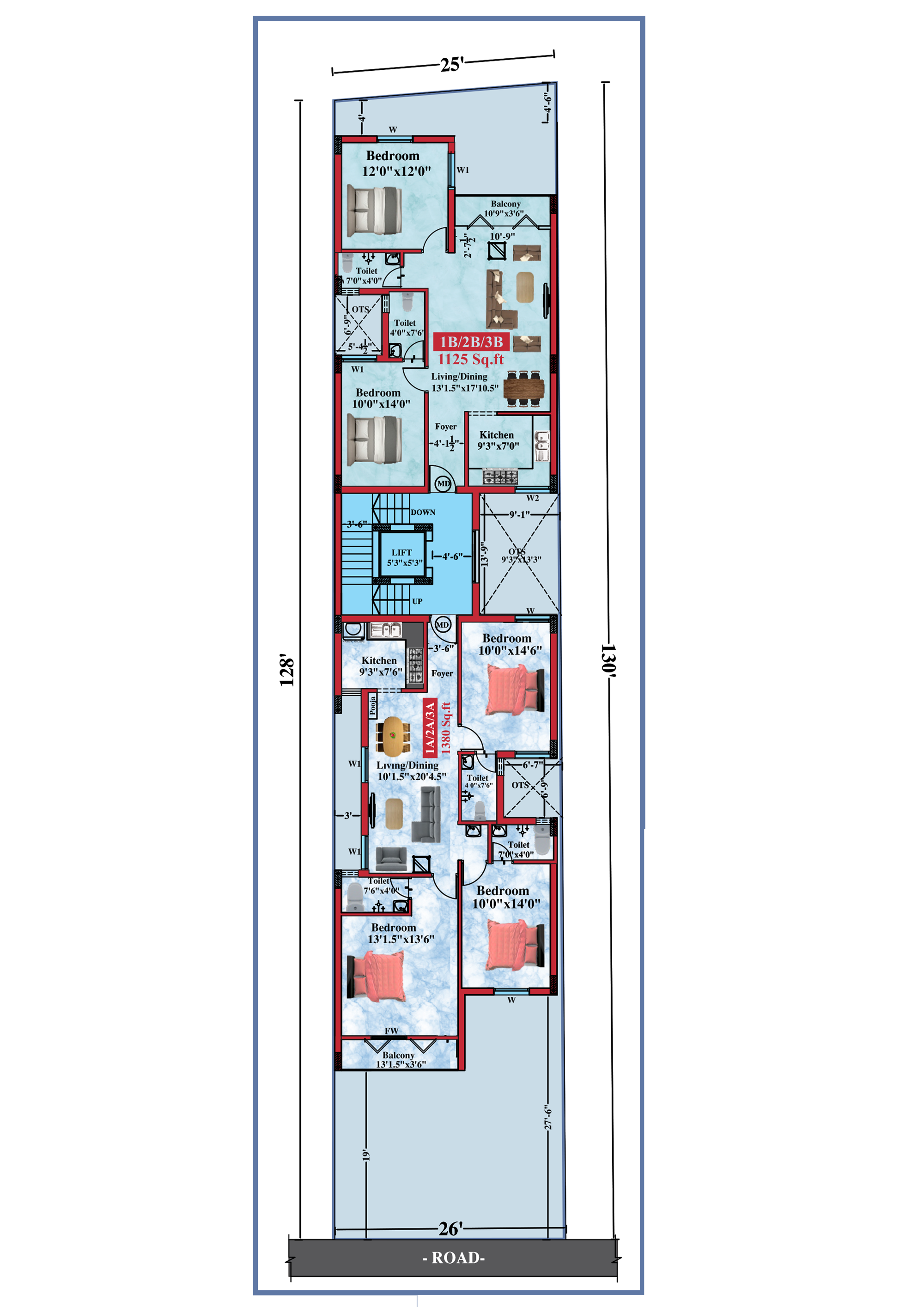

FLOOR PLANS

Door NO.10, Thandavarayan Street, Royapettah, Chennai - 600014

APC VALLI PERMAL

BLOCK / Flat No. Floor Flat Area Sq.ft UDS Extent - in Sq.ft BHK Availibility
2-B second floor 1125 497.3 2 Available
3-B third floor 1125 497.3 2 Available
