APC KAMAKSHI RAMASWAMY

SPECIFICATION OF THE APARTMENT & SCHEDULE OF AMENITIES

STRUCTURE

Earthquake resistant R.C.C. framed structure as per IS1893-2002 and IS456-2000 with suitable foundation as per soil test specifications.

All outer walls should be 9” Light weight Solid Block Work in c.m.1:5.

All inner walls shall be 4” Light weight Solid Block Work in c.m.1:4.

All external walls shall be of Plastered Finish.

FLOORING

All rooms shall have Marbonite flooring 4’x2’ and skirting(Johnson or Somany).

Balcony and Service Area shall be provided with Anti-Skit Tile Flooring.

Glazed tiles shall be provided in toilet walls concept design up-to height of 7'0” and flooring shall be provided Anti-Skid.

Glazed tiles shall be provided also on kitchen wall up-to height of 2'0” from the Kitchen platform.

Staircase shall be finished Granite with SS hand rails.

DOORS

Main door shall be in Burma Teak Wood with frame and varnished shutter Including safety grill gate. Magic Eye on Front Doors. Video Calling Bell.

All door frames shall be made out of African Teak Wood.

All internal doors shall be provided water Proofing –Moulded Flush doors.

Powder Coated steel fixtures shall be used for all door fittings.

WINDOWS

Windows shall be provided with UPVC Glazed Shutters.

In toilets Fixed Lowered Ventilators shall be provided. Provision for Exhaust fan along with wiring to be provided in all bathrooms.

All windows and ventilators shall have Enamel Painted Mild Steel Grills.

KITCHEN

Kitchen platform shall be finished in Black Galaxy Granite Slab with Stainless Steel Sink hind ware and Exhaust fan provision.

SANITARY WARE & PLUMBING

White European Water Closet (EWC) provided in attached all toilets and Parry ware make.

All plumbing line shall be of Concealed type as per ISI standard.

All taps and showers shall be of Jaquar Company product.

LOFTS

Sufficient Concrete lofts shall be provided in kitchen and bedrooms. Sufficient Cub-boards shall be provided in bedroom, kitchen, dining, wherever possible.

FINISHES

Internal surface shall be finished with two coats of putty with Royal Emulsion paint - Asian or Nippon Make only.

External surface shall be finished with Asian Apex Ultima Paint or Nippon.

WATER SUPPLY

One Sump provided for Metrowater (14,000 litres).

An Overhead Tank of sufficient capacity to store Bore Water - 8000 Liters and Metro Water - 6000 Liters in separate compartments shall also be provided.

Two Bores of 8” of 400 feet depth shall be provided.

WIRING

All wiring are Concealed suitable for 3-Phase supply. A/C wiring provision in Hall, Dining and Bedrooms.

All wiring shall have Finolex copper conductor and adequate routing for lighting and power loads as per ISI standard.

Separate energy meter shall be given to each apartment in meter room located at ground floor. Distribution board shall be provided in each apartment for easy isolation of supply with 3 phase Rotatory Switches.

Common services shall have separate meter.

15-A plug shall be provided in kitchen and toilets.

Motor-Automatic Switches for both bores (Both Bore and Metro water ) with censor-Overflow.

COMMON FEATURES

All open area shall be paved with Oil Coating Pavers Tiles.

Entrance and Exit gate shall be provided.

Common areas, staircases and compound shall be with Adequate light points.

8 Passengers Elevator shall be provided of the brand (OTIS or Johnson).

Balcony & Service Area Grill with gate shall be provided, cloth hanging Post outside the Balcony.

Rainwater harvesting shall be provided.

Genset – Ashok Leyland shall be provided for common area Lift and common lights and flats (5 lights, 5 fans & TV in hall ). Including lift operation. Both Manual and automatic switch will be provided

CCTV Camera shall be provided covering all common areas including all oors.

PAYMENT SCHEDULE:
Booking Advance (of Total cost) 10%
At the me of Basement Level 25%
At the me oF Ground Floor Roof Level 15%
At the me oF First Floor Roof Level 15%
At the me oF Second Floor Roof Level 10%
At the me oF Third Floor Roof Level 10%
At the me oF Flooring Level 10%
At the me oF Handing Over 5%

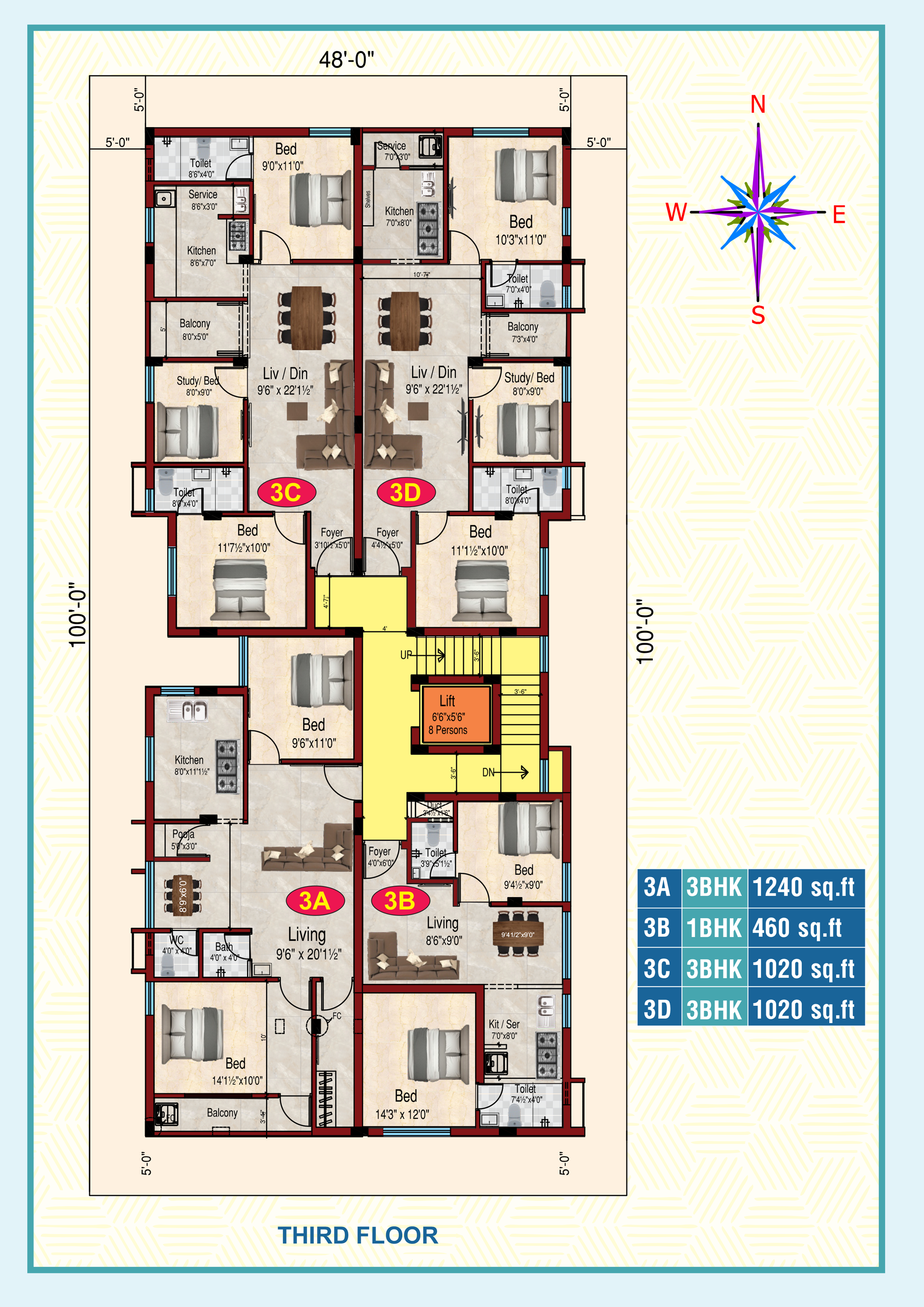

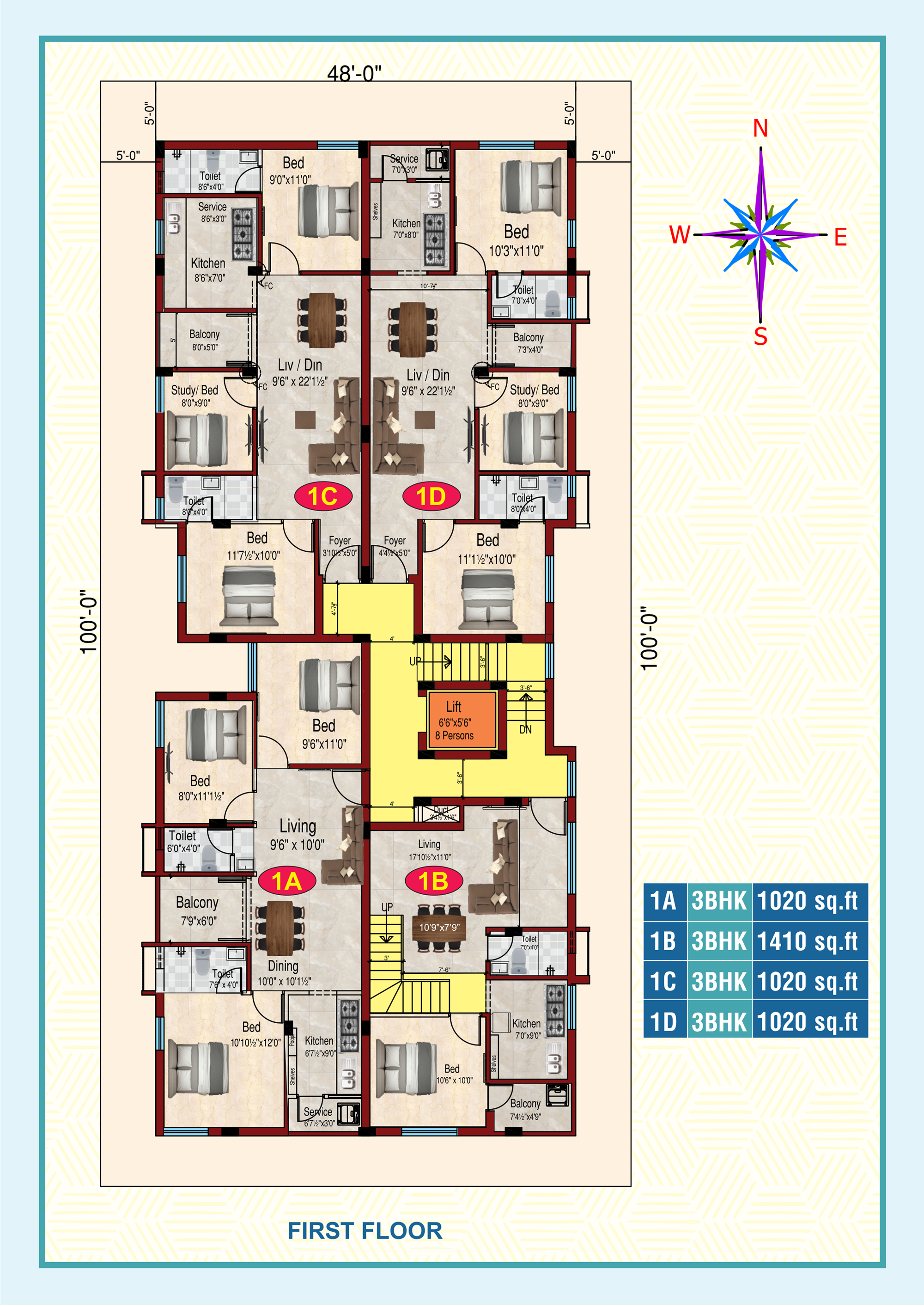

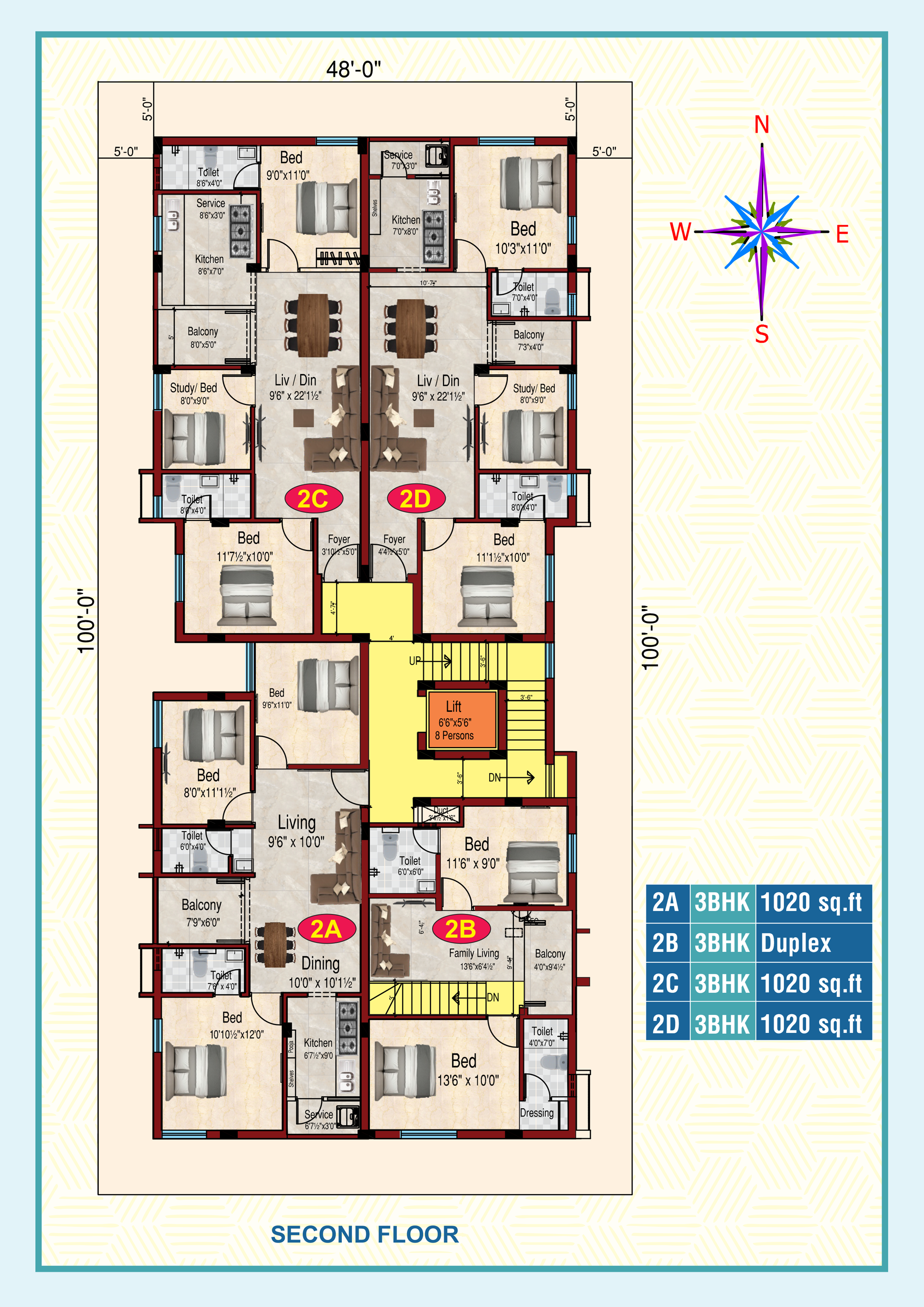

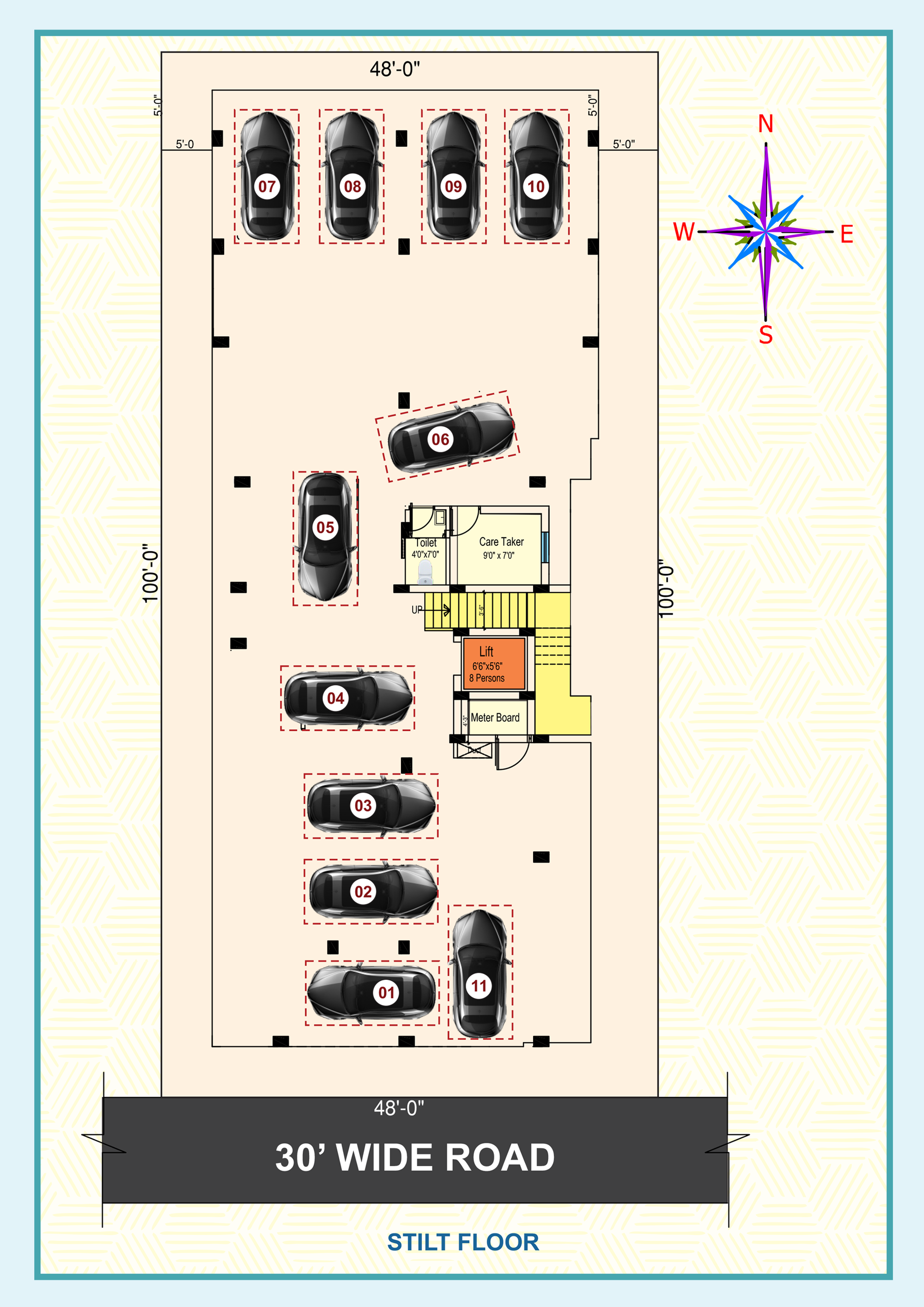

FLOOR PLANS
